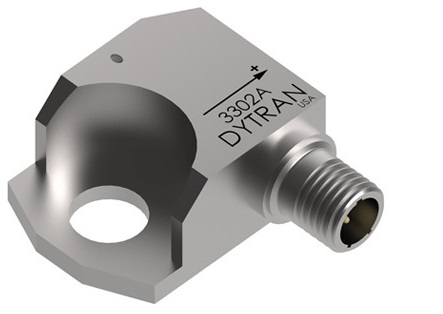

压电型机载加速度传感器3302A description:

The Dytran 3302A is a biaxial IEPE piezoelectric accelerometer designed for use in Health and Usage Monitoring Systems (HUMS) as well as Active Vibration Control(AVC)applications typically found on commercial and military aircraft.Offered with a sensitivity of 10 mV/g,units incorporate a radial 3-pin‘Mighty Mouse™’connector with a 5/16-28 thread.

Design of the Dytran model 3302A features quartz sensing elements,operating in shear mode and packaged in a compact stainless steel housing.The distinguishing feature of these accelerometers is their Dytran developed integral mounting bracket design,which facilitates improved sensor performance while eliminating costs associated with separate mounting brackets.They also offer a reduced mass,as compared to conventional sensors and mounting brackets. The Dytran model 3302A is hermetically sealed for reliable operation within high humidity and dirty environments, as well as case isolated to avoid EMI/ground loop interference.

• 量程：500 g；

• 灵敏度：10 mV/g；

• 频响(±5%)：10-1,000 Hz；

• 安装：Ø7.8毫米通孔安装；

• 重量：30 克；

• 材质：不锈钢；

• 3针‘Mighty Mouse™’径向接头；

• 电气隔离；

• 整体支架安装；

• 双轴；

• 密封；

• IEPE；

压电式机载加速度传感器产品应用：

• 主动振动控制(AVC);

• 健康和使用监控系统（HUMS，从直升机转子到固定翼）;

• 通用振动检测;

加速度传感器机载型报价及选型请来电咨询！
